Handguard

HANDGUARD MOUNT SIDE TYPE & FRONT TYPE

SPECIFICATIONS:

- Top triple clamp rigid mount kit for Armor hand guards provides more durable fitting.
- Prevents rotation of hand guards and protects your control levers and throttle in the event of a fall.
- Can be used on motorcycles which the top clamp fork bolts are attached from the side.
- Made of CNC machined A7009 aluminum, hard anodized titanium color with laser printed logo.
- Comes with special attaching bolts.
* Can not be used on top clamps which fork bolts are attached from the back.
* Hand guards modification may be needed to fit some handlebar bends.

SIDE TYPE

- Can be used on motorcycles which the top clamp fork bolts are attached from the side.

Part number Color Bolt center pitch
ZE71-1822 Ti-Color 16-30mm

FRONT TYPE

- Can be use for motorcycle which the top clamp fork bolts are fitted from the front.

Part number Color Bolt center pitch
ZE71-1821 Titanium 16-30mm

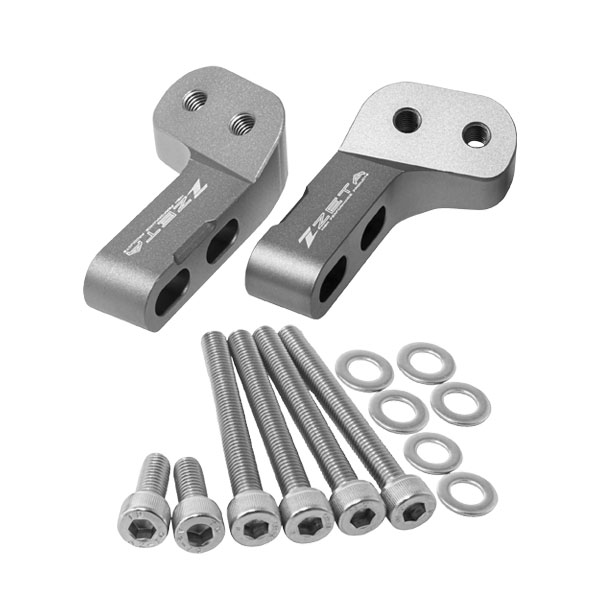

SIDE TYPE for CRF450L 19-

- Armor hand guard side mounting kit for CRF450L.
- Can be used on motorcycles with the top clamp fork bolts attached from the side.

Part number Color Bolt center pitch
ZE71-1823 Titanium 16-30mm
