Z-Titanium

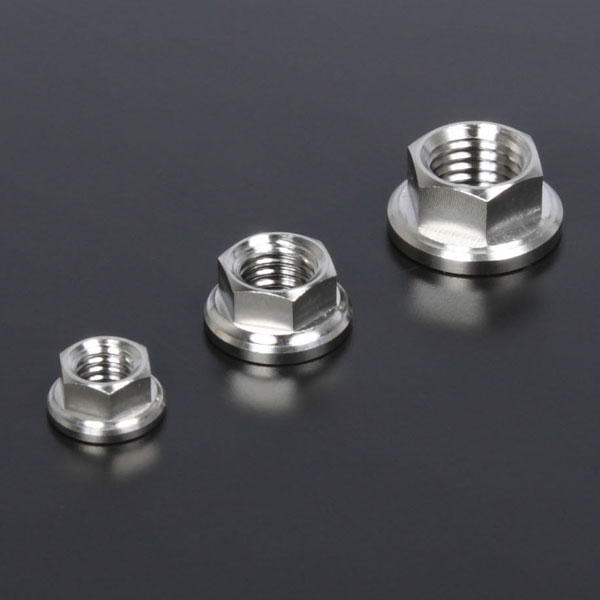

Z-Titanium FLANGE NUT COMPACT

SPECIFICATIONS:

- Titanium compact head size nut.
- Attained one size smaller head design because of its durable and light weight Ti-6AL-4V material.
- Great to use in high tightening torque and high temperature situations.
- Sold in single pieces.

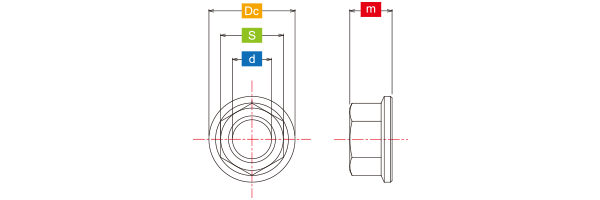

Flange Nut Compact
Part number Size(mm)
S Dc
ZT21-2051 M5 P=0.8 7 9.5 4.7
ZT21-2061 M6 P=1.0 8 11 5.4
ZT21-2081 M8 P=1.25 10 14 6.8
ZT21-2101 M10 P=1.25 12 17 8.2
